Teflon brake hose-brake hose

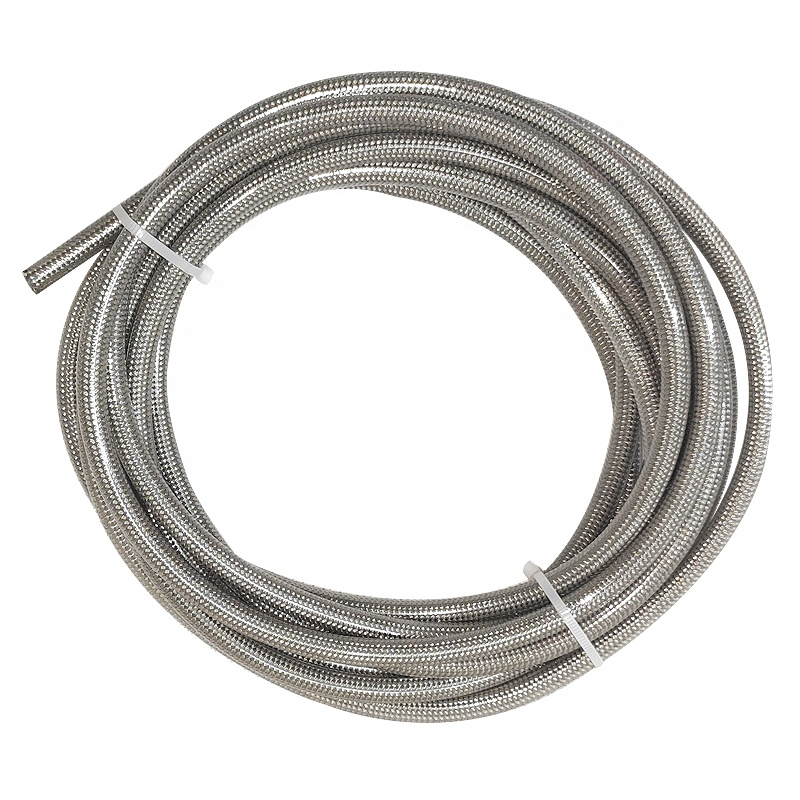

Our company's stainless steel braided brake oil pipe is made of high-quality 304 grade stainless steel wire braided. Using PTFE inner tube means that our brake oil pipe is highly resistant to expansion under high pressure and will not degrade due to contact with brake fluid. Finally, our stainless steel brake oil pipe is covered with a wear-resistant PVC/PU coating to protect the hose from scratches. The stainless steel outer braided layer has excellent heat resistance, wear resistance, and mechanical damage resistance, and will not absorb oil and fuel into its braided layer, thereby reducing weight.
- Overview
- Recommended Products
Product Parameter：
|
Inner tube |
PTFE core |
|
Woven layer |
304 stainless steel wire |
|
outer layer |

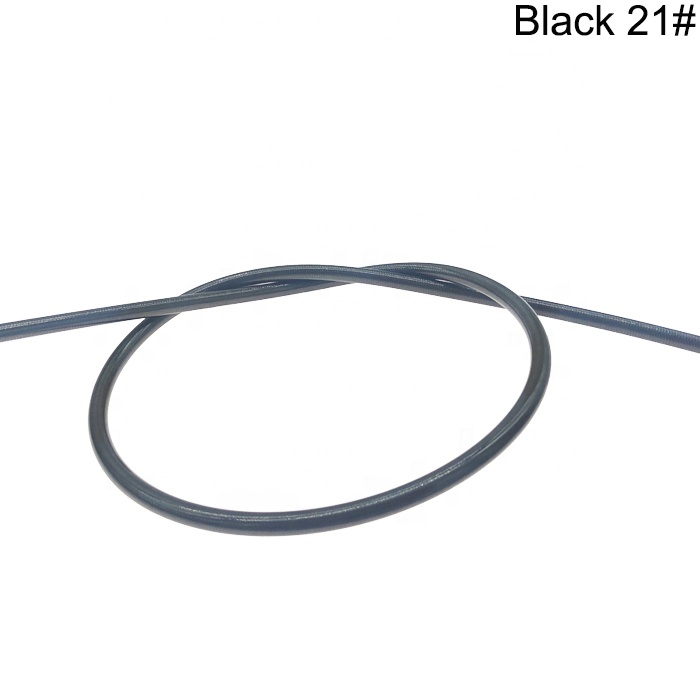

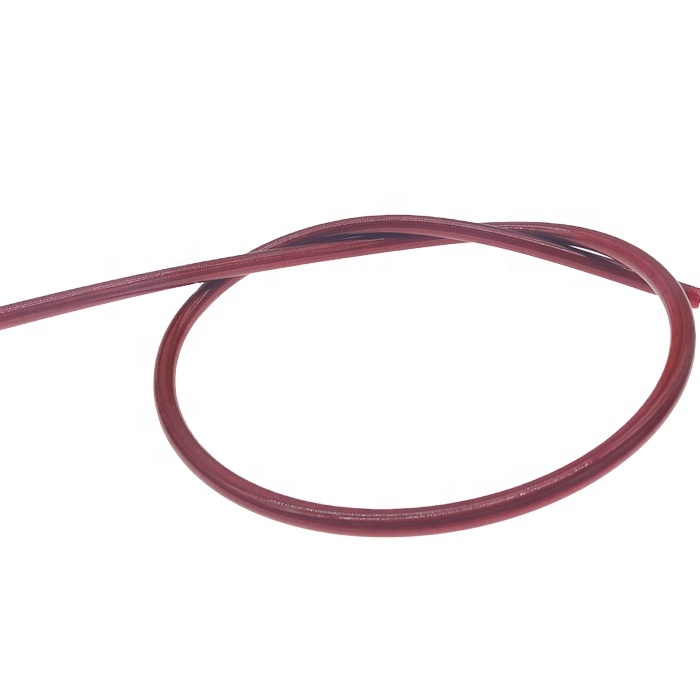

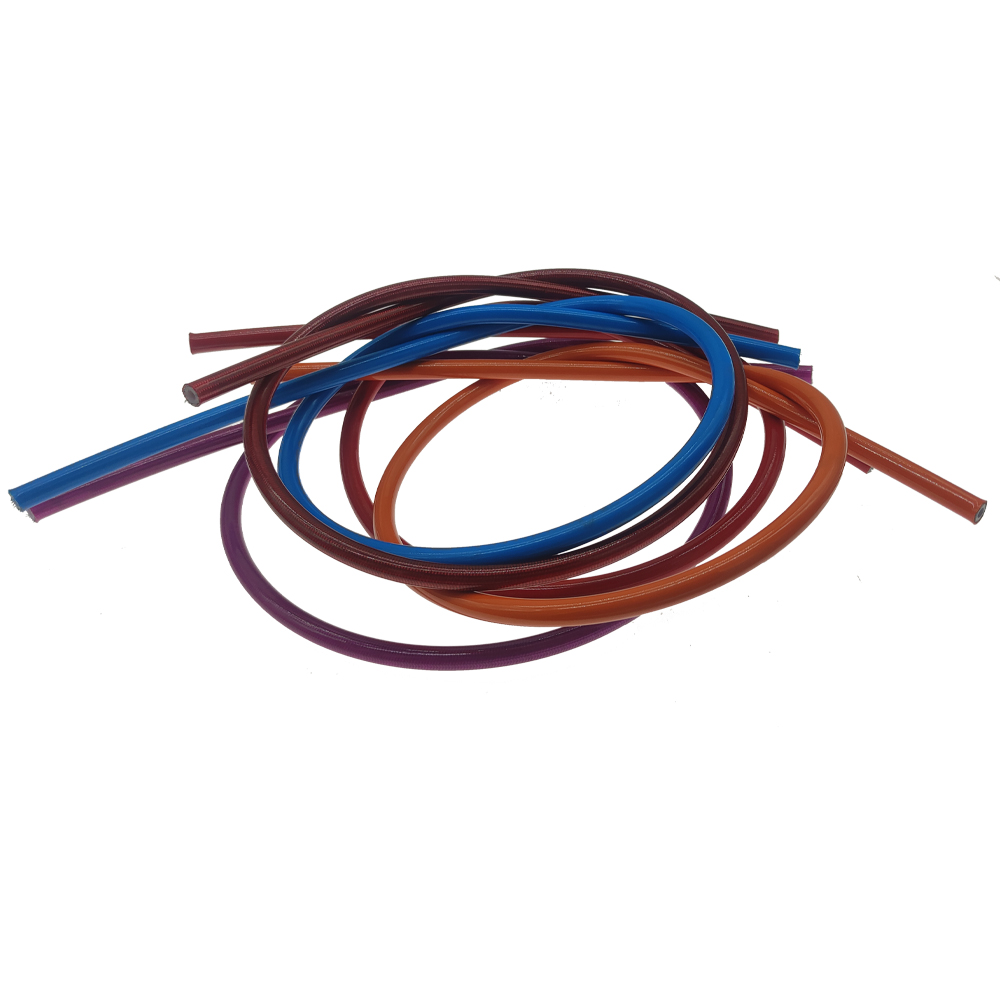

PU/PVC coating with 25 colors to choose from |
|
Working temperature |
-70 ℃~+260 ℃ |
Our company's stainless steel braided brake oil pipe is made of high-quality 304 grade stainless steel wire braided. Using PTFE inner tube means that our brake oil pipe is highly resistant to expansion under high pressure and will not degrade due to contact with brake fluid. Finally, our stainless steel brake oil pipe is covered with a wear-resistant PVC/PU coating to protect the hose from scratches. The stainless steel outer braided layer has excellent heat resistance, wear resistance, and mechanical damage resistance, and will not absorb oil and fuel into its braided layer, thereby reducing weight.
|
Product Code |
Core Material |
Stainless Steel Wire |
Inner Diameter (mm） |
Outer Diameter (mm) |
Working Pressure (PSI) |
Burst Pressure (PSI) |
Expansion Capacity |
|
SAEJ1401-1 |
Daikin Teflon |
304 |
3.2 |
7.2 |
4660 |
14000 |
0.05 cc/ft |
|
SAEJ1401-2 |
Domestic PTFE |
304 |
3.2 |
7.5 |
4660 |
14000 |
0.05 cc/ft |
Application：
Detail：
